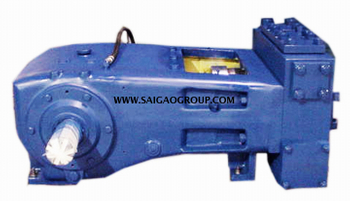

API 3NB 180 PISTON RECIPROCATING PUMP

3NB Series Piston Reciprocating Pump
Triplex piston reciprocating pump are mainly used in: oil delivery, oil receiving, circulation mud, slim hole shallow well drilling, etc.This series of pump is easy in operation and maintenance and reliable with good absorbing property. It can directly absorb from the ground and pools (like mud pool and pool) below 2 meters with absorbing pipe below 4M under elevation of 1000 meters without poured into, with natural absorption efficiency >95%.
It.can also apply to other high pressure liquid transportation with self-absorb. Cylinder material: alloy steel, stainless steel, duplex steel or aluminum bronze; cylinder liner material: bi-metal or ceramic; piston material: rubber or polyurethane; suction /discharge valve adopt API standard valve, ball valve, plate valve, cone valve etc.

3NB180 :
Quantity:
  • 3NB 180
  • SAIGAO
  • 84314310

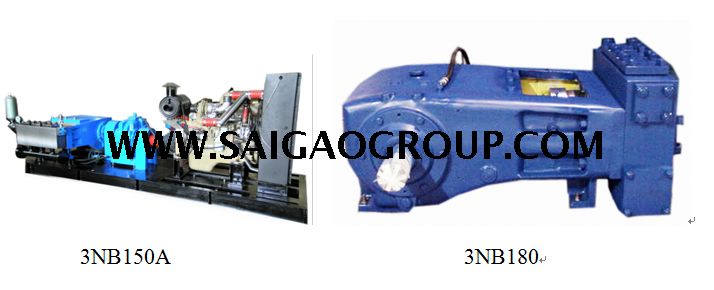

3NB 180 TRIPLEX RECIPROCATING PISTON PUMP


    Model  Piston Dia.
Max. Press.(Mpa)
Theoretical Displacement  PumpSpeed      (rpm) Shaft Power    (Kw)
(L/min) (m3/h)
3NB180 76.2 19 408 24.5 165 140.87
19 371 22.3 150 128.06
19 297 17.8 120 102.45
19 223 13.4 90 76.84
88.9 14 556 33.4 165 141.28
14 505 30.3 150 128.44
14 404 24.3 120 102.75
14 303 18.2 90 77.06
101.6 11 726 43.6 165 144.99
11 660 39.6 150 131.81
11 528 31.7 120 105.45
11 396 23.8 90 79.09
110

9.2 851 51.1 165 142.15
9.2 774 46.4 150 129.22
9.2 619 37.1 120 103.38
9.2 464 27.9 90 77.53
114.3 8.7 919 55.1 165 145.13
8.7 835 50.1 150 131.94
8.7 668 40.1 120 105.55
8.7 501 30.1 90 79.16
120 7.8 1013 60.8 165 143.42
7.8 921 55.2 150 130.38
7.8 737 44.2 120 104.31
7.8 552 33.1 90 78.23
127 7 1134 68.1 165 144.17
7 1031 61.9 150 131.06
7 825 49.5 120 104.85
7 619 37.1 90 78.64
130 6.6 1189 71.3 165 142.43
6.6 1081 64.8 150 129.48
6.6 864 51.9 120 103.58
6.6 648 38.9 90 77.69
139.7 5.8 1373 82.4 165 144.54
5.8 1248 74.9 150 131.40
5.8 998 59.9 120 105.12
5.8 749 44.9 90 78.84
152.4

4.9 1634 98.0 165 145.32
4.9 1485 89.1 150 132.11
4.9 1188 71.3 120 105.69
4.9 891 53.5 90 79.27
3NB180A 76.2 25 408 24.5 165 185.36
25 371 22.3 150 168.51
25 297 17.8 120 134.81
25 223 13.4 90 101.10
88.9 18 556 33.4 165 181.65
18 505 30.3 150 165.14
18 404 24.3 120 132.11
18 303 18.2 90 99.08
101.6 14 726 43.6 165 184.53
14 660 39.6 150 167.76
14 528 31.7 120 134.21
14 396 23.8 90 100.65
114.3 11 919 55.1 165 183.50
11 835 50.1 150 166.82
11 668 40.1 120 133.46
11 501 30.1 90 100.09
127 9 1134 68.1 165 185.36
9 1031 61.9 150 168.51
9 825 49.5 120 134.81
9 619 37.1 90 101.10
139.7 7.5 1373 82.4 165 186.90
7.5 1248 74.9 150 169.91
7.5 998 59.9 120 135.93
7.5 749 44.9 90 101.95
152.4 6.3 1634 98.0 165 186.84
6.3 1485 89.1 150 169.85
6.3 1188 71.3 120 135.88
6.3 891 53.5 90 101.91

safety valve , liner hanger, downhole motor
