BW1200/7 Mud Pump
BW1200/7 Mud Pump
Share to:

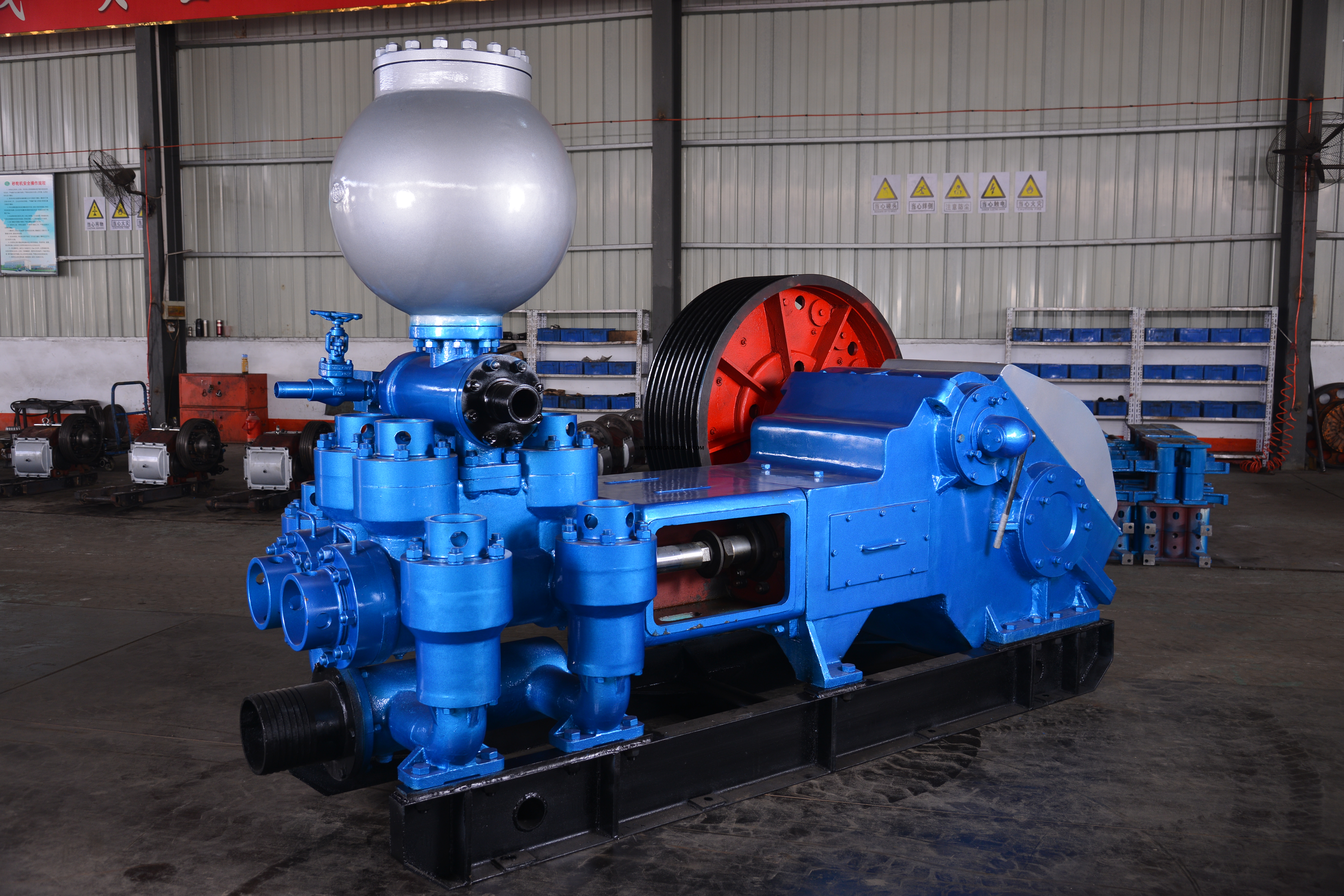

BW1200/7 Mud Pump

BW1200/7 Horizontal Double Cylinder Reciprocating Double Action Piston Pump
BW1200/7 Slurry Pump is horizontal double cylinder reciprocating double action piston pump.
The power has electric driving and diesel driving. It also can use hydraulic motor to drive.customer can choose before ordering.
It is applicable for 1500 meters water well drilling, core drilling and clear-out service for oil well, as well as pumping slurry to the pump station for oil well drilling.
BW1200/7 Mud Pump can realize to change discharge volume and pressure by using different size cylinder sleeves.
Advanced product design,reasonable structure,high pressure,flow,multi-file variable, energy saving,light volume,efficiency,plant life,safe operation,easy maintenance.
BW series mud pump is widely used in mining,drilling,coal,railway,highway,water conservancy and hydro-power,bridges,high-rise buildings,foundation reinforcement works.
BW1200/7:
BW90 BW120 BW150 BW200 BW250 BW350/13 BW400 BW450 BW600 BW750 BW850 BW1200 3NB Series 5NB Series F Series
Quantity:
Inquire Add to Basket

  • BW1200/7
  • SAIGAO
  • 84314310

Technical specifications of BW1200/7 Mud Pump


Type		 Horizontal double cylinder reciprocating double action piston pump

Stroke		 270（mm）

Pump speed		 70（times/min）

Cylinder diameter
（mm）		 160 150

Flow（L/min）		 1200 1000

Pressure（MPa）		 7 8

Power（Kw)		 185
Shape size（mm） 3045*1440*2420
Weight（kg） 7200

safety valve , liner hanger, downhole motor
