Disinfection channel

This product provides a relatively closed space channel cabin,the whole cabin is anti-bacterial and anti pollution, modular assembly,using the thermal infrared thermometer system,before entering the channel, the temperature of the personnel is detected, after the temperature is normal,

Quantity:
  • SAIGAO

This product provides a relatively closed space channel cabin,the whole cabin is anti-bacterial and anti pollution, modular assembly,using the thermal infrared thermometer system,before entering the channel, the temperature of the personnel is detected, after the temperature is normal, the personnel enter the activity area through the disinfection cabin,using the principle of ultrasonic high-frequency vibration,through the high-frequency resonance of ceramic atomizer,the molecular structure of liquid water is hit The disinfectant will be flled in the clean disinfection cabin with the water mist.All personnel and articles passing through the cabin
passage will attach to the disinfection cabin in an all-round way,so as to thoroughly disinfect the personnel andarticles in an all-round way and cutoff the transmission path of the virus.

6

product  foatures
 infrared human body temperature measurement.
 √Automatc alarm and self-stop protection for lack of liquid.
Freehand contact UV spray disinfection.
Stable control of disInfection level to ensure disinfection Collection Passage lighting(convenient for use at night effect.
Food grade disinfectant to ensure human safety.
ultrasonic atomization system,fog out at non angle of M Universal wheel wih brake funcion,easy to move attack.
Face recognition function.
Disinfection of sole.
Attendance functio.
Automatic liquid supplement and waste liquid.
Collection Passage lighting(convenient for use at night.
The upper and lower slopes can be folded and disassembled for conven lent storage.
Universal wheel wih brake funcion,easy to move.
Mask wearing test.
Realtime broadcast of mu lingual voice.

2

Product parameters

model

MDY-1800A

Spray channel length

116cm

Temperature measurement channel length

64cm

Fog method Ultrasonic atomization Human induction Microwave detection
Dimensions

Length: 180cm

Width: 110cm

Height: 240cm

Spray control method

Microwave induction start

Delayed stop

(Adjustable from 5-60 seconds delay)

2 Outlet

Body temperature sensing method

Infrared spectrum

(Precise real-time biopsy)

Internal channel size

Length: 180cm

Width: 104cm

Height: 197cm

Spray efficiency

3-6Kg/H

Spectral range

8-14um

Use voltage

AC220V

Spray area

Protection method

Magnetic suction PVC door curtain Temperature collection distance

30-50cm

rated power

505W

Spray disinfection

waiting time

Recommended 5-15 seconds

The device is not forced to set

Body temperature collection location

Forehead, inner side of wrist

(Contactless)

Use noise Less than 36dB Disinfectant tank capacity

20L

Body temperature collection accuracy Plus or minus 0.2 °
Use environment 0 ° -40 ° Type of disinfectant

200PPM times

Chloric acid diluted solution

Body temperature detection output

Test qualified output

Green light on +

Single beep

Detect over temperature output

Red light on +

Continuous alarm tone

Rainproof function

Equipment shell

With rainproof function

Hand disinfection method

Independent area

Induction spray

Disposable disinfectant

Body temperature collection time 2 seconds
Device body material

Cold rolled steel plate

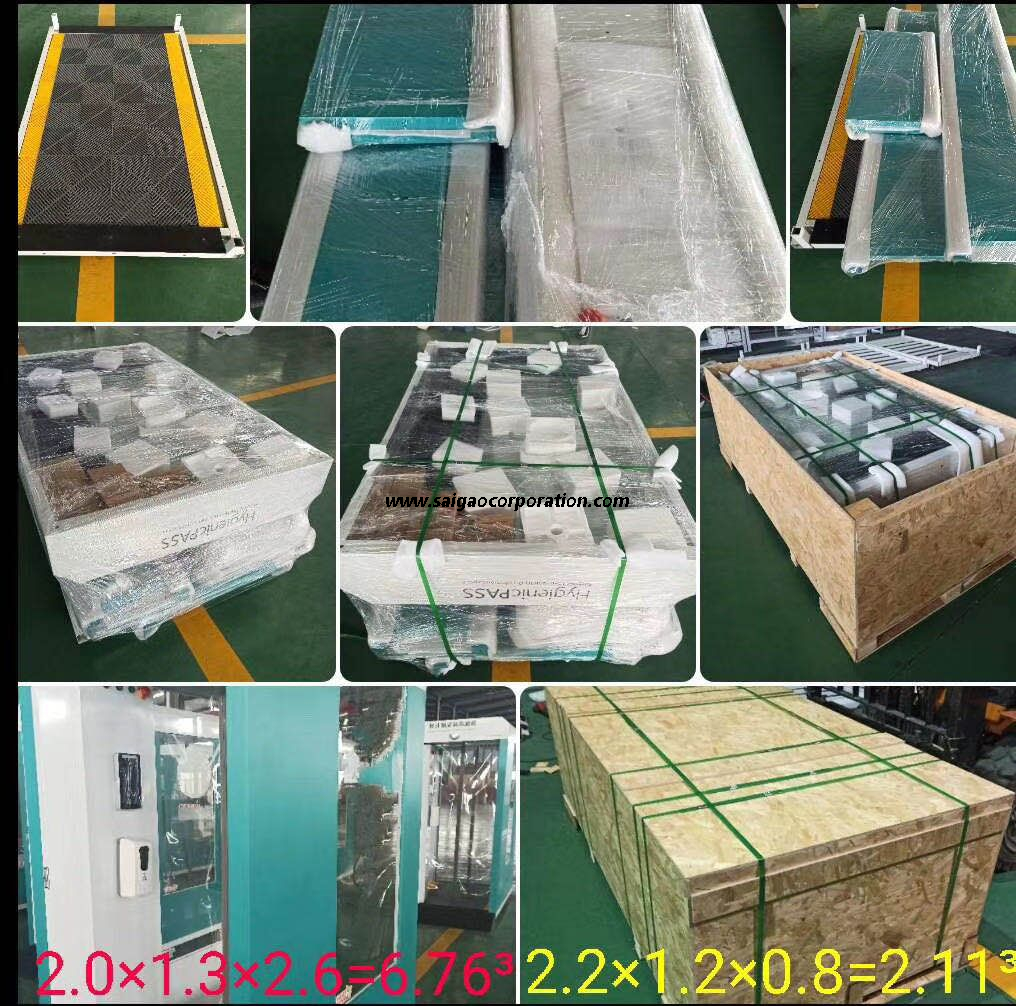

Disassembled Pacakge size L2.0M*1.3M*2.6M Temperature display panel

8 inch Android

smart system

Total gross weight 270kgs Assembled Pacakge size L2.2M*1.2M*0.8M Body temperature collection range

34-45℃

6

installation steps
1Move the main body of the cabin to the designated position and fix the bottom four ferry boats.Pay attention to adjust the height of freighter and use the cabin to keep level.
2Open the door of the cabin,mix the disinfectant in proportion and add it into the water tank.Open the hand sterilizer and add disinfectant.
3The power indicator light of the atomizer of the device is on.Press the start button and the device will run automatically.
4Once the temperature is powered on,it will start automatically,if it needs to be turned off.Please tum off the power of the thermometer.
5This product safety installation video,please contact the sales personnel for details.
