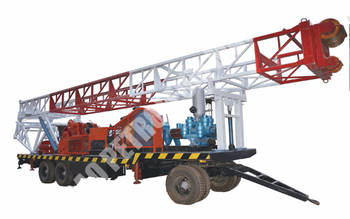

SPT-600 DRILLING RIG

SPT-600 drilling rig is trailer-type drilling rig and easy to transport, it is mechanical transmission and its rotary table rotate back and transmit very smooth. This rig adopts double winch structure and its tower head translation can make the auxiliary winch alignment automatically to the center, it is convenient to install and uninstall the drill rod. The whole derrick is hydraulic landing, the whole rig hydraulic support leg adjust level and the plate is hydraulic open and close which is convenient; It also add mechanical auxiliary landing leg and make the drilling equipment more safe and stable. The minimum revolution speed of this drilling machine can be up to 21r/min and it is suitable for air DTH hammer drilling.
Mainly used in industrial and agricultural water well drilling, hydrological geological exploration and pile construction.

Quantity:
  • SPT-600 Drilling Rig
  • SAIGAO
  • 84304900

Technical Specifications of SPT-600 Drilling Rig

Drilling Depth(m) 600
Openning Diameter of Rotary Table(mm)  530
RPM of Rotary Table (r/min) Positive and negative  21, 41, 80, 139

Hoist Capacity of Master Winch(t)  6
Kelly(mm)    108*108*10500
Hole Drill Pipe(mm)  Φ89*8750
Mast Structured n
Effective Height (m)  14
Loading Capacity of Power Swivel(t) 36
Loading Capacity of Traveling Block(t)  36
Power(kw) 55
Mud Pump Model  BW850/5
Mud Pump Power(kw) 90
Weight (t)  24
Dimensions( L* W* H) (m) 12.5*2.5*3.7(in traveling mode)
10*2.5*15.7(in operating mode)
