NBB280/8: | |
---|---|
Quantity: | |
NBB280/8
SAIGAO
84314310

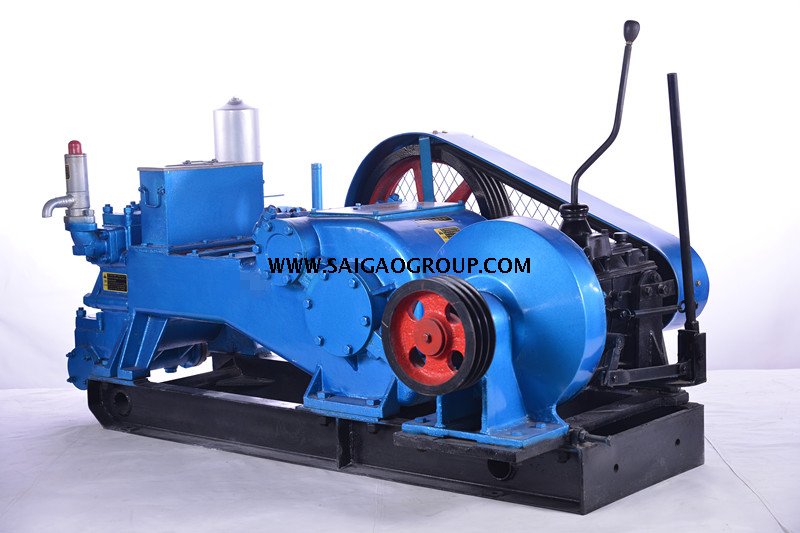

Type | Horizontal three cylinder reciprocating single acting piston pump | ||||
Cylinder diameter | 85(mm) | ||||
Stroke | 100(mm) | ||||
Pump speed (times/min) | 207 | 141 | 96 | 63 | 45 |
Flow(L/min) | 280 | 187 | 126 | 80 | 55 |
Pressure(MPa) | 8 | ||||
Power(Kw) | 45 | ||||
Shape size(mm) | 2150*1260*1000 | ||||
Weight(kg) | 1548(power section is not included) |
Type | Horizontal three cylinder reciprocating single acting piston pump | ||||
Cylinder diameter | 85(mm) | ||||
Stroke | 100(mm) | ||||
Pump speed (times/min) | 207 | 141 | 96 | 63 | 45 |
Flow(L/min) | 280 | 187 | 126 | 80 | 55 |
Pressure(MPa) | 8 | ||||
Power(Kw) | 45 | ||||
Shape size(mm) | 2150*1260*1000 | ||||
Weight(kg) | 1548(power section is not included) |
